Catures:

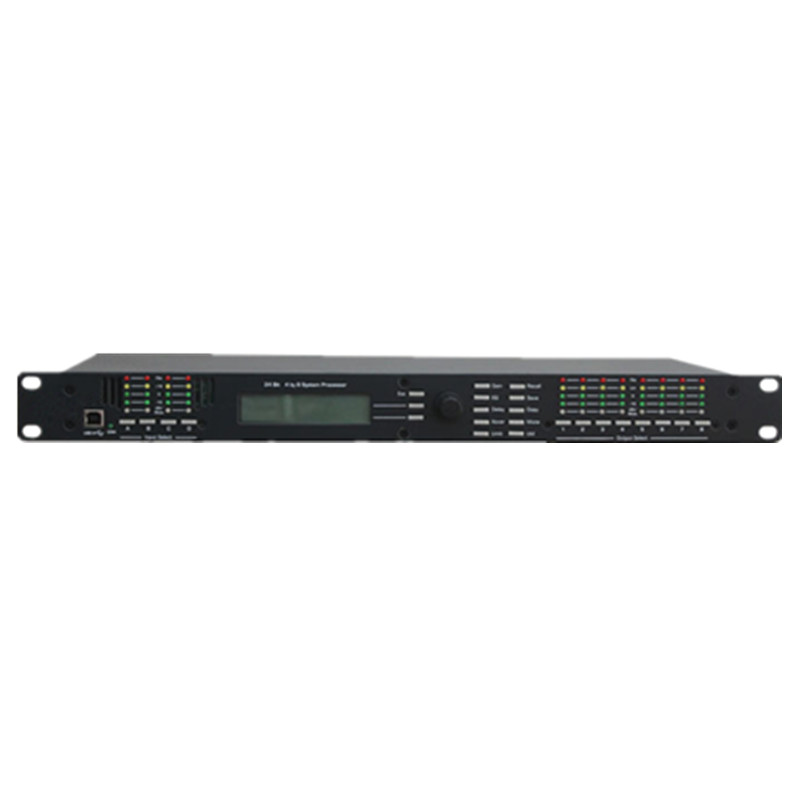

· One Rack Space，four Inputs-eight Outputs

· Extremely intuitive User interface

· Crossover,EQ,Delay and Limiter Functions

· Outputs Assignable to Any input

· Superior Sonic Quality

· Front Panel or PC programming and control

· USB and RS-232 interface，Third party contril friendly

· XLR Audio connections

· Balanced inputs and outputs

· Parametric Filters and comp/Limiter to control feedback problems

· Linkwitz-Riley,Bessel and Butterworth Filters

· 12,18，24 and 48dB/Octave Range

· Parametric EQ：1/64th to 4 Octave Range

· 682ms input and output Delay

· Limiter on Each Output

· Individual input and Output Metering

· Four Levels of security

Spccifications：

Frequency response：20HZ-20KHZ（±2.5dB）

Distortion：<0.01%，在1KHZ,+20dBu

Dynamic range：20-20KHZ(>110dB)(not weighted)

Output noise：<-90Bu(not weighted)

Thepower supply voltage：80-260VAC,60/50Hz,30W(the maximum power)

Environmental temperature：40-120°F(4-49°C)

Size：（long*high*width）482.6X44.4X216MM

Weight：5.9Kg
