10” professional speakers
Model: F10
Passive two-way speaker: 1 × 10 inch low frequency, 1 × 1 inch compression high-frequency, 300W (maximum 1200W)
Frequency response 65-20000 Hz ± 3 dB, 56 Hz @ -10 dB
Unit 1 × 10 inch low frequency, 1 × 1 inch compression high frequency
Rated power: 300W (continuous) / 600W (program) / 1200W (peak)
Sensitivity (1W / 1 meter) 96 dB
Maximum Sound Pressure (SPL) 119 dB (continuous) 125 dB (peak)
Nominal impedance of 8 ohms
The coverage angle is 90 degrees x 50 degrees
Socket 2 x NEUTRIK NL4
Accessories 10 × M8, 4 × M8
Volume (width × height × depth) 351 × 500 × 317 (mm)
Weight (each) 17 kg

12” professional speakers
Model: F12
Frequency response 65-18000 Hz ± 3 dB
Unit 1 × 12 inch low frequency, 1 × 1 inch compression high frequency
Rated power: 380W (continuous) / 760W (program) / 1500W (peak)
Sensitivity (1W / 1 meter) 97 dB
Maximum sound pressure (SPL) 120 dB (continuous) 126 dB (peak)
Nominal impedance of 8 ohms
The coverage angle is 80 degrees x 50 degrees
Socket 2 x NEUTRIK NL4
Accessories 10 × M8, 4 × M8
Volume (width × height × depth) 398 × 571 × 365 (mm)
Weight (each) 21 kg

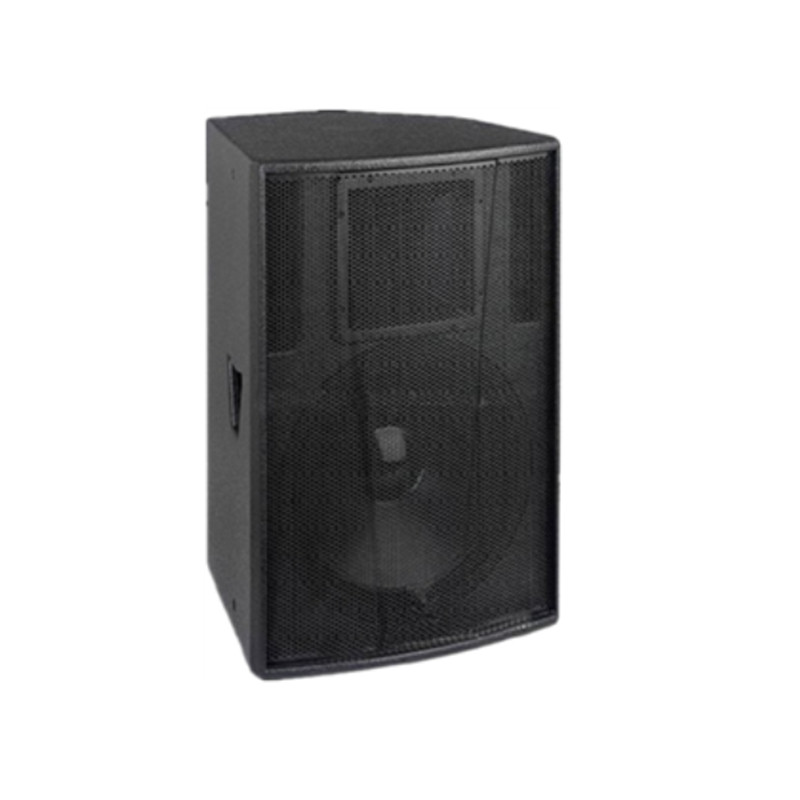

15” professional full-range speakers
Model: F15
Basic parameters:
Power 400W
Peak power 1200W
Impedance 8Ω
Frequency response 55Hz-18KHz
Sensitivity of 99dB
The maximum control sound pressure 123dB
Peak sound pressure of 129dB
Bass 1 * 15 "(390mm) / 3" voice coi
Treble 1.4 "exit compression driver 3" voice coi
Weight 32.5kg
Size(Width X height X depth): 471 * 690 * 443mm


Double - 15” - inch full - frequency speaker
Model: F215
System: 2-way loudspeaker system
Frequency response (± 3dB): 45Hz ~ 20KHz
Woofer LF driver: 2x (15in) Φ75mm
Tweeter HF driver: 1x (1.7in) Φ44mm
Impedance Nominal Impedance: 4ohms
Sensitivity System sensitivity (1w @ 1m): 102dB SPL
Maximum SPL: 132dB
Power handling: 1100W
Peak power: 2200W
Nominal Coverage angle (H x V): 80 ° x 60 °
External dimensions Dimensions (W x D x H): 561x540x1066mm / PCS
Input Connectors Connectors: 2xSpeakon | connectors (NL 4)
Enclosure material: 18mm MDF
Surface Finish: Textured black paint
Grille: Black perforated steel
Suspension system: M8 Screw
Net Weight: 57Kg
