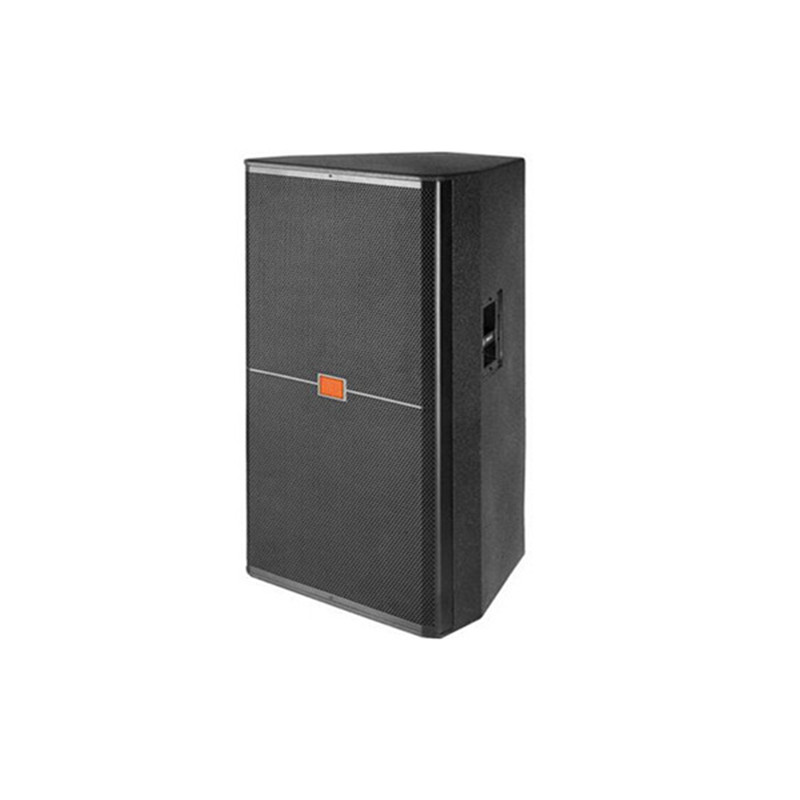

Speaker Type: 12 ", 2 way, reflective bass, stage back to listen / multi-purpose speaker
Frequency range (-10db): 70HZ-20KHZ
Frequency response (± 3db): 83HZ-18KHZ
Coverage (H * V): 90 ° X 50 °
Volume (width * height * depth): 349 * 546 * 260MM
Low frequency driver: 1 * 2262H differential driver
High frequency driver: 1 * 2431H3 "(voice coil) compression driver
Sensitivity (1W / 1M): 96db (passive mode)
Impedance: 8Ω
Maximum sound pressure level: 131db

Rated Power: 350W (continuous) / 700W (program) / 1400W (peak) Input Connector: NL-4 X 2

Speaker Type: 15 ", 2 way, reflective bass, stage back to listen / multi-purpose speaker
Frequency range (-10db): 43HZ-20KHZ
Frequency response (± 3db): 53HZ-18KHZ
Coverage (H * V): 75 ° X 50 °
Volume (width * height * depth): 711 * 439 * 406MM
Low frequency driver: 1 * 2265H differential driver
High frequency driver: 1 * 2431H3 "(voice coil) compression driver
Sensitivity (1W / 1M): 96db (passive mode)
Impedance: 8Ω
Maximum sound pressure level: 131db @ 1m
Rated power: 500W (continuous) / 1000W (program) / 2000W (peak)
Hanging / mounting: double angle, 35mm pole socket, 5 gauge and M10 hanging point
Accessories: CVR handle pad cover

SRX-FF3: 3 detachable flight accessories

Speaker Type: Dual 15 ", 2 way, reflective bass
Frequency range (-10dB): 37Hz-20kHz
Frequency response (± 3dB): 53Hz-20kHz
Coverage angle (H × V): 75 ° × 50 °
Volume (H × W × D): 1219 × 541 × 508mm
Net Weight: 45kg (100lbs)
Low frequency driver: 2 × JBL 2265H differential driver
High frequency driver: 1 x JBL 2451H 4 "(voice coil) compression driver
Sensitivity (1w / 1m): 99dB (passive mode)
Impedance: 4Ω
Maximum sound pressure level: 136dB @ 1m
Rated power: 1200W (continuous) / 2400W (program) / 4800W (peak)
Hanging / Mounting: 5 gauge and M10 hanging points
Accessories: CVR handle pad cover
SRX-FF3: 3 detachable flight accessories
